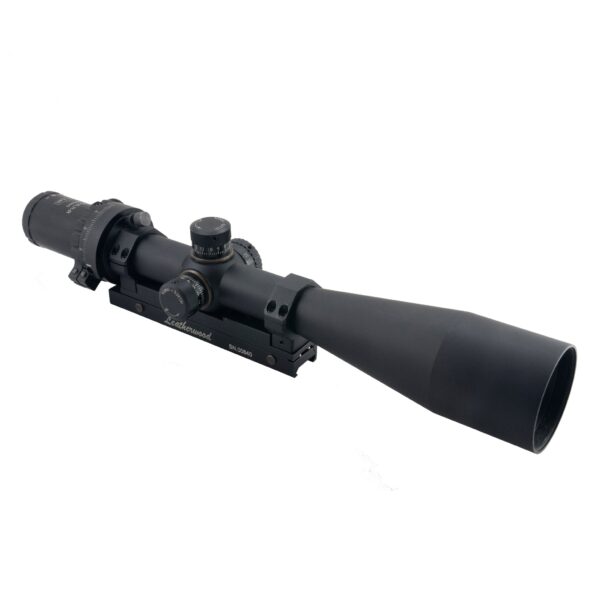

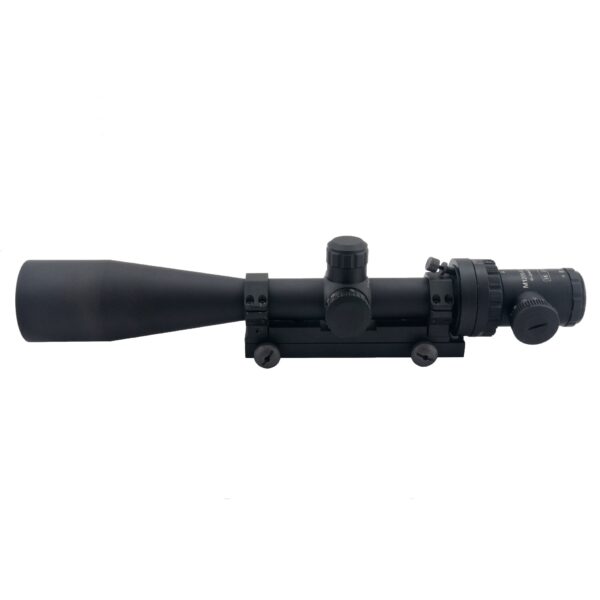

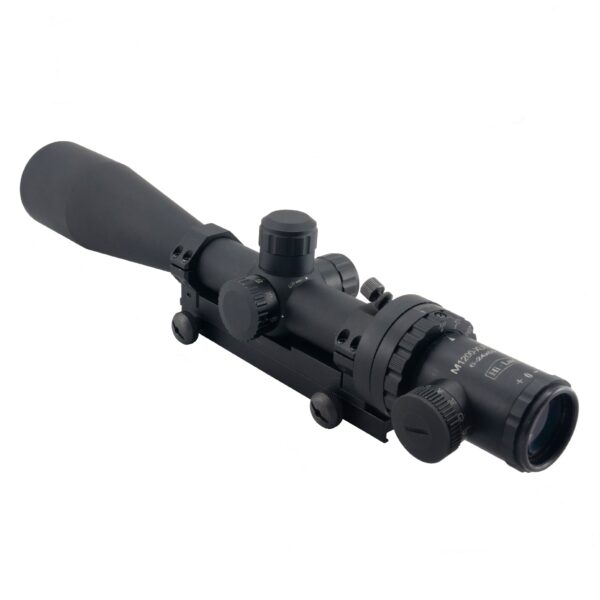

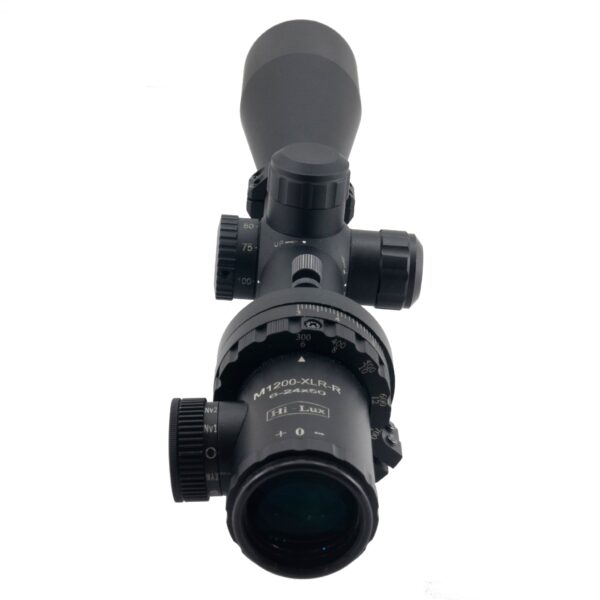

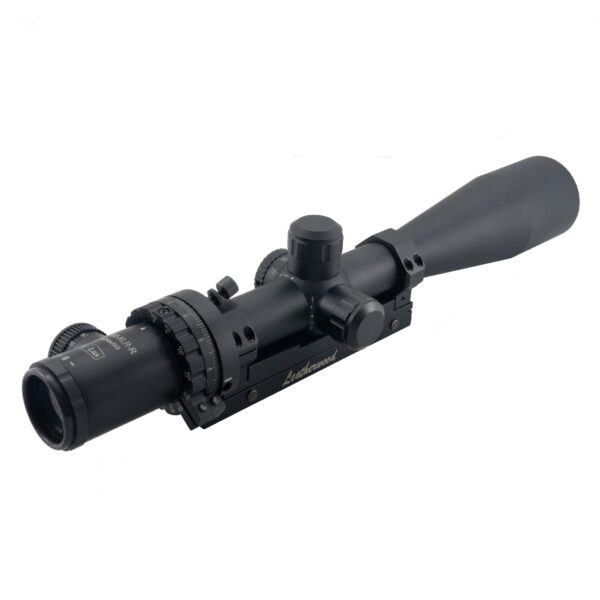

M1200ART-XLR Hi Lux M1200 6X-24X50 ART (Auto Ranging Trajectory) Scope w/ Green or Red Illuminated XLR Ranging Reticle
Description
M1200ART-XLR Hi Lux M1200 6X-24X50 ART (Auto Ranging Trajectory) Scope w/ Green or Red Illuminated XLR Ranging Reticle
Thanks to a larger and completely re-engineered CAMputer system, the M1200 ART-XLR can now be calibrated to the majority of today’s center-fire rifles – chambered for cartridges from as small as the .223 Remington up to the hard hitting .50 BMG. As long as the shooter knows the bullet ballistic coefficient and the muzzle velocity, this scope can be calibrated for more than 75-percent of today’s most widely used calibers and rifles to automatically keep hits in the center of mass from 300 to 1,200 meters – or within the capability of the bullet and load.

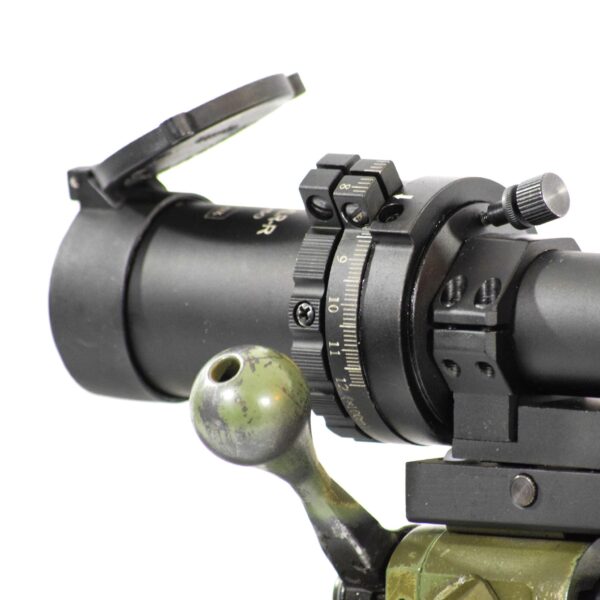

To operate this scope, all the shooter has to do is zoom in on a target of known size until it fits inside the brackets of the ranging reticle…steady the aim…and take the shot. The CAMputer system automatically compensates for bullet trajectory as the shooter frames the known size target in the reticle.
Specifications:
| Objective Lens Diameter: | 50 mm |
| Magnification: | 6 – 24 x |
| Tube Diameter: | 30 mm |
| Reticle Focal Plane: | Second Focal Plane (SFP) |
| Exit Pupil: | 2 – 8.5 mm |
| Battery Type: | CR2032 |
| Battery Quantity: | 1 |
| Field of View, Linear: | 4 – 12 ft at 100 yds |
| Eye Relief: | 3.75 in |
| Diopter Adjustment Range: | -2 – 3 dpt |
| Color: | Black |
| Weight: | 32 oz |
| Fabric/Material: | Aluminum |
| Length: | 15.5 in |
| Width: | 3.25 in |
| Height: | 3.5 in |
| Illumination Type: | LED |
| Brightness Settings: | 11 |
| Adjustment Type: | MOA |
| Adjustment Click Value: | 0.25 MOA |
| Adjustment Range: | 60 MOA |
| Parallax: | 25 yds to infinity |
| Focus Range: | 25 m to Infinity |
| Lens Material: | Glass |
| Optical Coating: | Diamond Tuff14, Fully Multi-Coated |
| Attachment/Mount Type: | Screw |
| Battery Life: | 300 hours |
| Operating Temperature: | -20 – 60 Celsius |
| Weather Resistance: | Yes |
| Water Resistance Level: | IP65 |
| Shockproof: | Yes |
| Fogproof: | Yes |
| Finish: | Matte |
| Included Accessories: | Flip-up Lens Cover, Lens Cloth, CR2032 Battery, Allen Wrenches |
| Magnification Type: | Variable |
| W/E Travel at 100 Yds: | 60 MOA |
Features:
- The XLR reticle is a second focal plane mRad reticle.
- The center dot is 1/2 MOA.
- Every whole mil and half mil are indicated by tick marks on the axes.
- The opening at the center of the reticle can be used to frame and range a known 1/2 meter sized target.
- Additionally, there are ranging scales that can be used to frame known sized targets by adjusting the magnification.
- The XLR reticle is true at 20X
- Automatic Ranging Trajectory (ART) Integrated Mount compensates for bullet drop from 300 – 1200 yards or meters (depending on initial setup). 6-24X50 Magnification ratio. External Windage adjustment built in front ring.
- Extreme Long Range (XLR) Ranging Reticle is based in mils and allows the shooter to rangefinder known sized targets by framing them within the reticle.
